Figure 8.17 Computer model matches experimental data

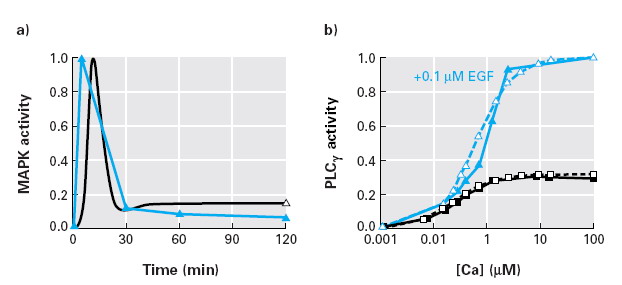

核心提示：a) Measuring MAPK activity as a function of time. Simulation (open triangle) and real data (?lled triangle) are very similar. The stimulus in both cases was a steady supply of 100 nM EGF. b) Measuring PLC activity as a function of calcium concentr
